Vacuum Auxiliary and Roughing Pumps Systems

The United States is responsible for the development, design, and fabrication of the vacuum auxiliary and roughing pumps systems.

ITER has unique vacuum pumping requirements due to high throughput tritium
operation. The ITER tokamak, cryostat, and auxiliary vacuum chambers must be evacuated prior to start of high vacuum operations with active vacuum pumping provided to certain clients during operations. The roughing pump system provides vacuum to the torus, neutral beam, and cryostat volumes, and supports active monitoring and vacuum distribution via the service vacuum system. The system also supports the regeneration of the torus, cryostat, and neutral beam injector cryopumps.

The vacuum auxiliary system consists of valves, pipe manifolds, high vacuum
pumping stations, sensors, and controls. Many elements are required to be compatible to high radiation and magnetic fields as well as suitable for tritium service.

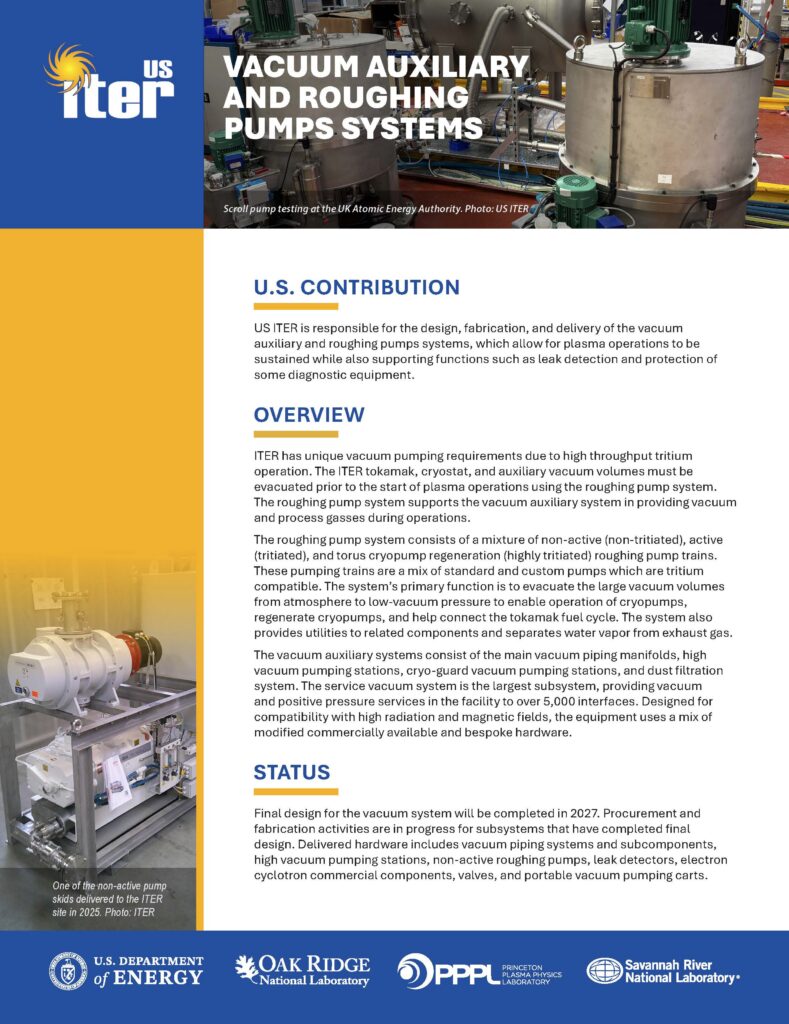

View Fact Sheet
